RoboSquirter
The RoboSquirter is a dual X-Y gantry through transmission scanner, industry standard, for slightly curved to flat aircraft panels and parts, generically known as a squirter system. The gantries are of lightweight design each using two stationary DC servo motors and a single mono belt to drive the transducers in two orthogonal directions, in sync, at speeds upwards of 20 in/sec while maintaining extreme accuracy and repeatability within 0.005". In comparison, most systems trying to achieve the same would be heavy, rigid, clunky; hence, less nimble, less accurate, and very slow.
The RoboSquirter design is inherently modular and dimensions can easily be matched to customer part envelope size and space.

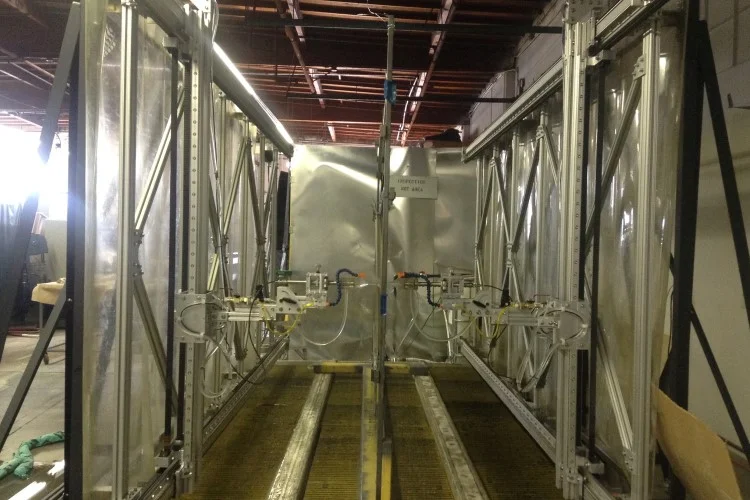

RoboSquirter

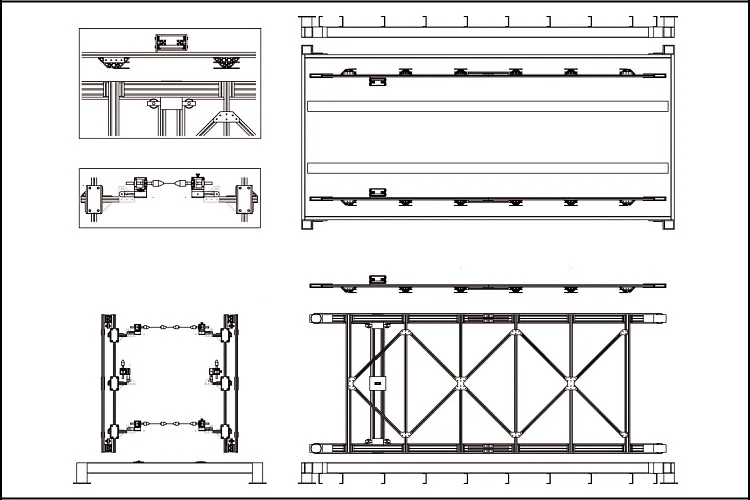

Modular Design
Squirter

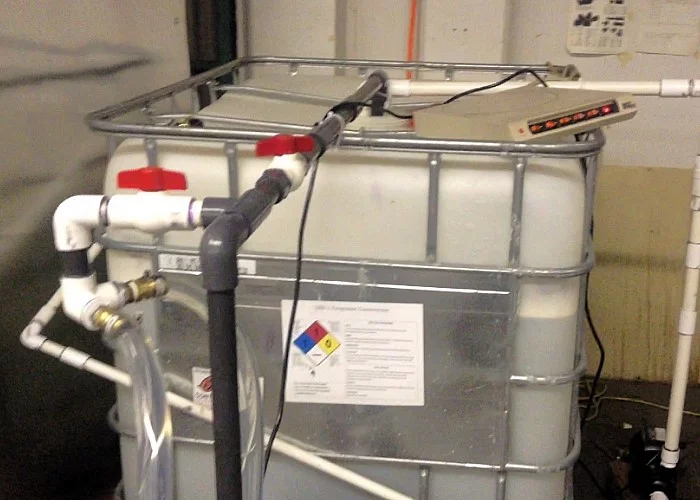

Water Supply and Recirculation System

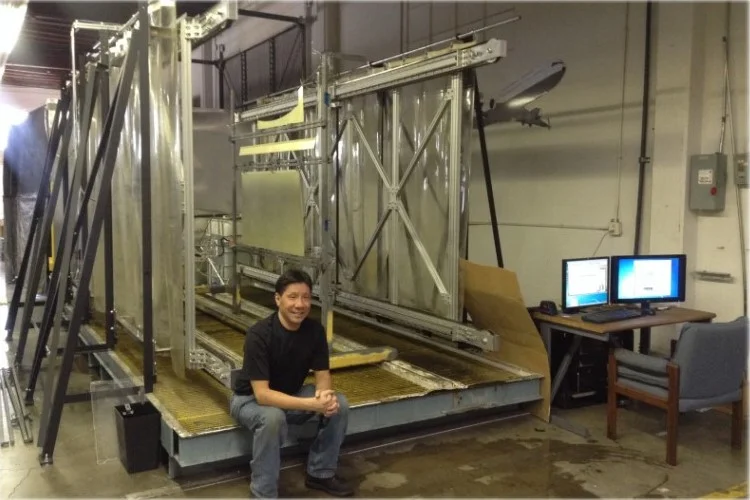

Inspecting Parts
Parts to be Inspected
